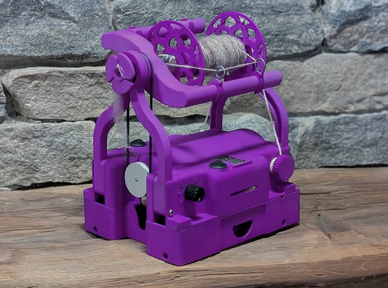

A perfect balance of portability and power, the new Electric Eel Wheel Fold transforms from a sturdy eSpinner into a compact, carry-anywhere companion in seconds.
Product Specs
Weight: 2 lbs
Dimensions: 5.1W x 7L x 7.9H in. (3.3H in. when folded)
Flyer speed: 3,000 RPMs
Bobbin Size: 4 oz
Quiet, brushless motor
Digital RPM display for consistent flyer speeds
Getting Started with your EEW Fold
todo – Insert getting started video
User Manual
For written instructions, download the EEW Fold User Manual.
Battery Packs
The EEW Fold comes with a wall power cord. It becomes even more portable when paired with a compatible battery pack (not included).
USB C Power Bank Option
For this option you need a USB C power bank that supports Power Delivery (PD) of 65W or more and supports 15V output. This INIU Power Bank has been tested and works well. You will also need this USB C to 15V 3A cable which connects from the EEW Fold to the power bank.
12V Battery Option
These battery option works fine, but the EEW Fold will not run at full speed. It will still go over 2000 RPMs which is more than fast enough for most spinners, but if you want to go at maximum speed you need a 15V battery.
The TalentCell 12V 6000mAh provides over 8 hours of use and installs into the bottom case easily. It comes with the cable required to power the EEW Fold. Other batteries with 12V output of 3A and a 2.5×5.5mm barrel connector should work.
International Power
The EEW Fold comes with a Type A North American style power plug. The power supply works with different voltages around the world so if you don’t have that type of plug you can either use a travel adapter or get a “c7 power cord“.
Troubleshooting
The most common cause for vibration is an unbalanced flyer. Ensure that the two unused sliding hooks are directly across from the two being used. Also, check that one set of hooks face upwards and one set faces downwards. This ensures that the weight is evenly distributed on the flyer and only matters at higher speeds.
If your tension string breaks frequently, smooth out any small rough edges in the bobbin grooves.
Any type of similar string can be used as a replacement. The one that ships with the EEW Fold is cotton, but some people prefer different fiber types. People who spin fine yarn sometimes prefer a thinner tension string. Feel free to experiment.
Replacement Parts
We’re committed to supporting our products long after they ship. For at least three years after a product launches, and often much longer. We continue to offer replacement parts for all commonly requested components. Many of these parts are standard off-the-shelf items. While we sell some parts directly, we also provide links to alternative suppliers so you have options. Our goal is to make servicing your tools as easy and flexible as possible.
If you need a part that isn’t listed, please contact us.
| EEW Part | Description | Sources |
| Plastic Parts | Free 3D printable files for many plastic parts | Dreaming Robots |
| Motor | Custom Brushless Motor | Dreaming Robots |
| Circuit Board | Custom Printed Circuit Board | Not yet available |
| Power Supply | 15V 5A Power Supply with 5.5×2.1mm Jack | Amazon |
| Drive Belt | EPDM70 Drive Belt (oring size 151) | McMaster-Carr, Amazon |
| Foot Pedal | Tap style pedal with 1/4 inch jack (tattoo pedal) | Amazon |
| Sliding Hook | Custom hooks that slide on flyer arms | Not yet available |
| Reducer oring | Size 011 oring (7.65×1.78mm) EPDM 50 | McMaster-Carr, Amazon |
| Spindle Front Maiden oring | Size 012 oring (9.25×1.78mm) EPDM 50 | McMaster-Carr, Amazon |
| Spindle Rear Maiden oring | Size 007 oring (3.68×1.78mm) EPDM 50 | McMaster-Carr, Amazon |
| Spindle Bobbin oring | Size 008 oring (4.47×1.78mm) EPDM 50 | McMaster-Carr, Amazon |
| Orifice Hook | Custom yarn threading hook | Dreaming Robots |
| Tension String | 1.5-2.0 mm cotton string | Local Store, Amazon |
| Bobbin Bearing | R6-2RS bearing | Dreaming Robots, McMaster-Carr, Amazon |
| Front Maiden Bearing | 6804-2RS Bearing | McMaster-Carr, Amazon |
| Rear Maiden Bearing | 608-2RS Bearing | McMaster-Carr, Amazon |
| Tension Spring | Spring holding tension string | Dreaming Robots (Firm), Dreaming Robots (Soft), Amazon |
| Magnets | 11x11x3mm N35 with M2.5 hole | Unknown |
| Motor Set Screw | M3 x 4mm long set screw | McMaster-Carr, Amazon |
| Hex Wrench | 1.5mm allen wrench | Amazon |
| Motor Screw | M3 x 4mm long machine screw | McMaster-Carr, Amazon |
| Tension Dial Screw | M5 x 16mm self threading screw | Amazon |
| Circuit Board + Bottom Cover Screw | M3 x 6mm self threading screw | McMaster-Carr |
| Screen Screw | M2 x 5mm self threading screw | McMaster-Carr |
| Maiden Hinge Screw | M3 x 25mm machine screw | McMaster-Carr |
| Maiden Hinge Lock Nut | M3 lock nut | McMaster-Carr |
| Long Magnet Screw | M2.5 x 8mm machine screw | McMaster-Carr |
| Short Magnet Screw | M2.5 x 5mm machine screw | McMaster-Carr |
| Magnet nut | M2.5 nut | McMaster-Carr |
